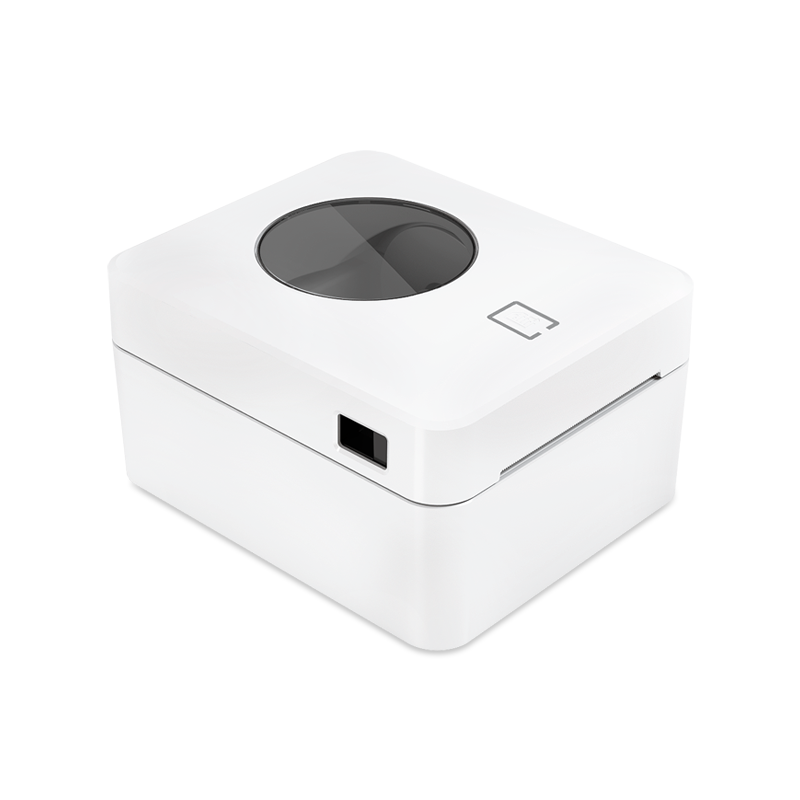

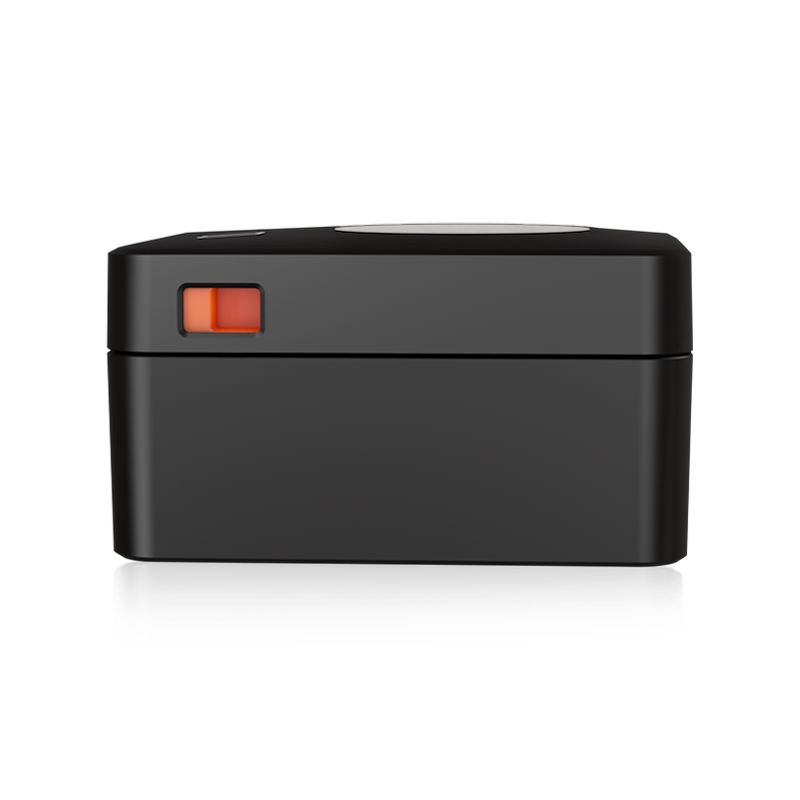

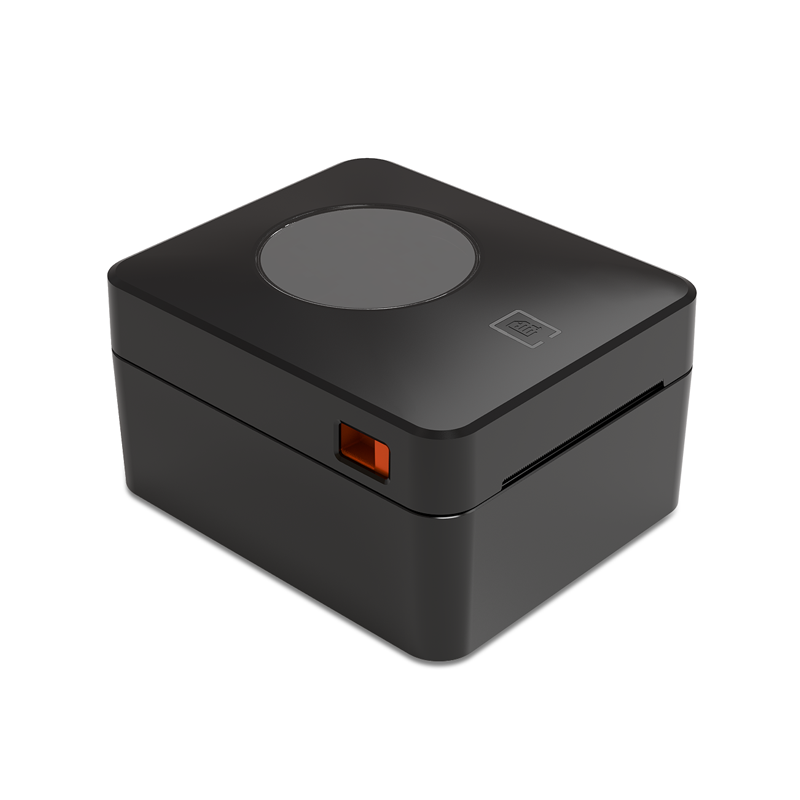

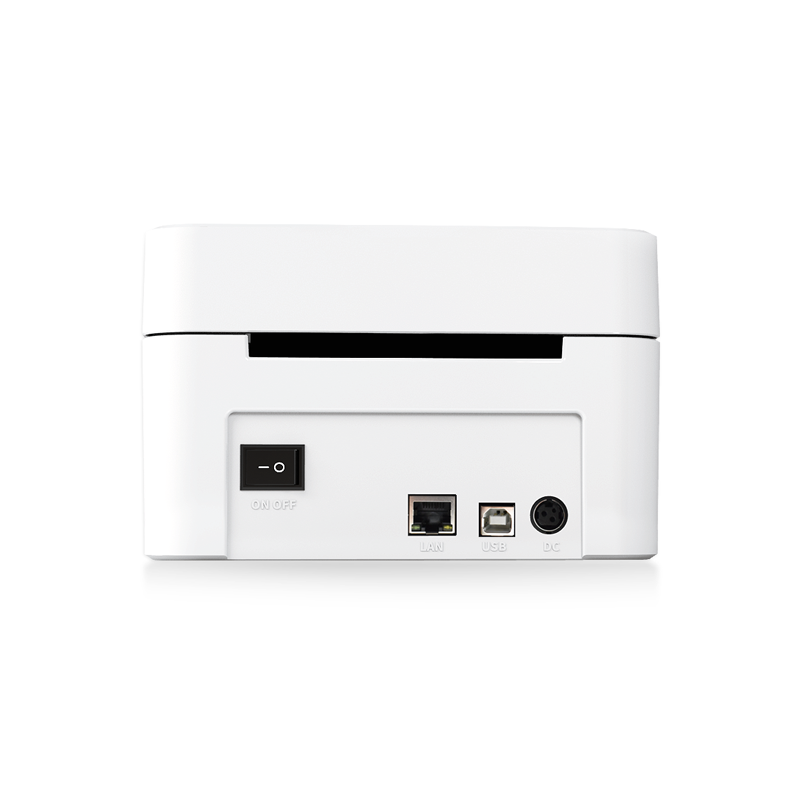

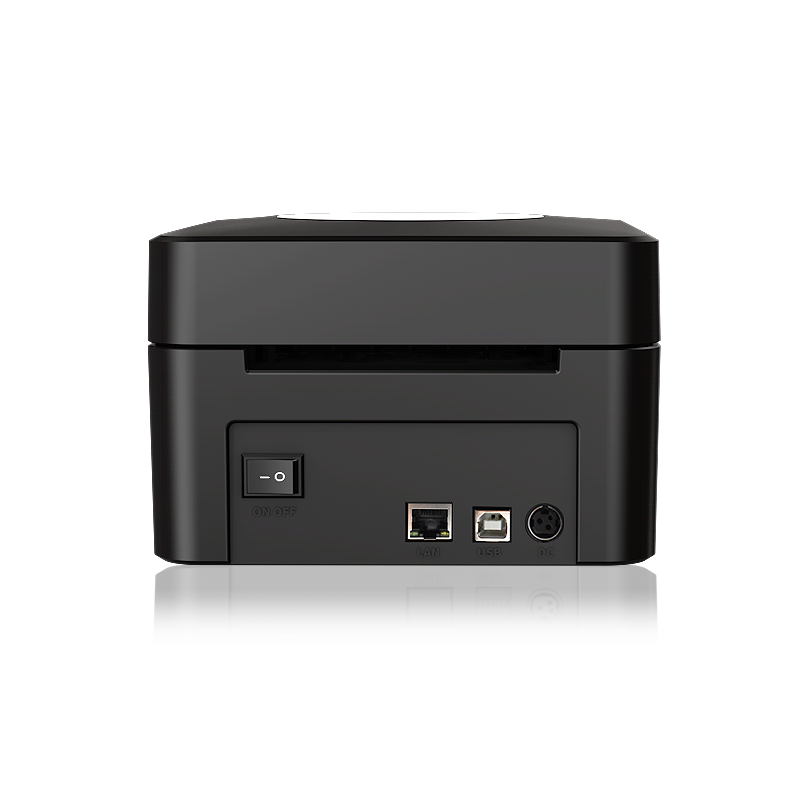

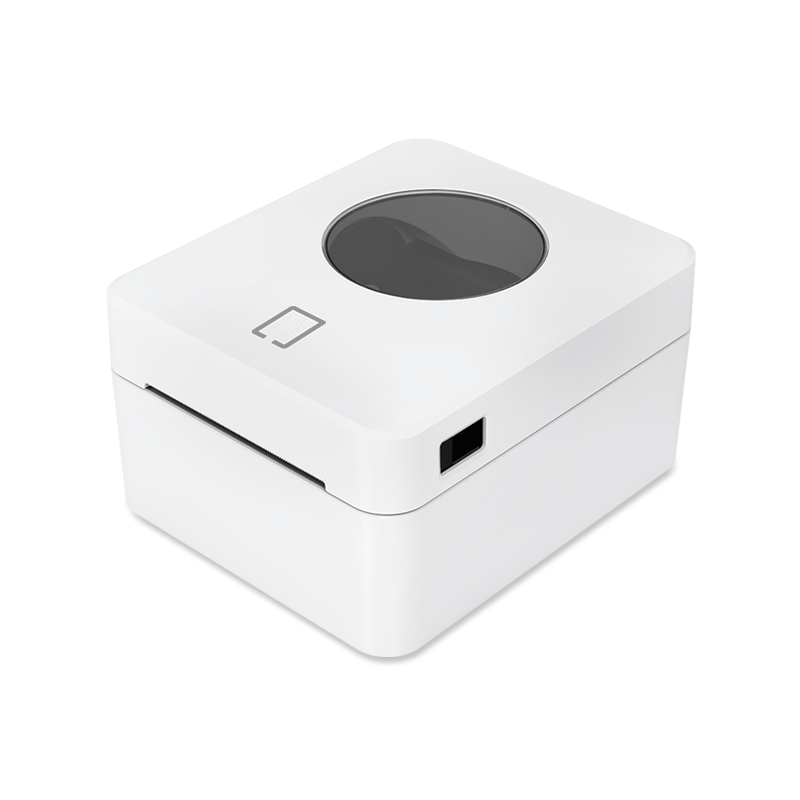

ZJ-9250 Label Printer

Printer Manual Printer Driver

Basic Features:

1. Fashion appearance.

2. Fast printing speed, save printing time;

3. Integrated design, easy paper loading;

4. Intelligent detection, automatic feed and reverse paper;
5. Label off intelligent function;

6. Support USB / LAN / Bluetooth/WIFI interfaces, Can be handled with large workload printing.

	Specifications
	Interfaces	USB / LAN / Bluetooth /WIFI (optional)
	Print Command	TSPL /CPCL/ESC/POS
	Print Method	Direct Line Thermal
	Print Speed	160mm/sec
	Resolution	203DPI
	TPH Life	50KM
	Sensors	Gap sensor / Cover opening sensor / Black mark sensor / Paper exit sensor
	Printer Driver	Windows / MAC OS ; Support IOS / Android
	Paper
	Thermal Paper Types	Continuous, gap, black mark, fan-fold and punched hole
	Effective Print Width	25-100 mm
	Available Paper Width	104 mm （MAX)
	Paper Thickness	0.06-0.30 mm
	Electrical
	Input	AC 100-240V, 50-60Hz
	Output	DC 24V / 2.5A
	Package
	Printer Dimension	215180115mm
	Pieces Per CTN	8 Pieces
	CTN Dimension	51 x 48 x 29.5 cm
	Gross Weight	15kgs
