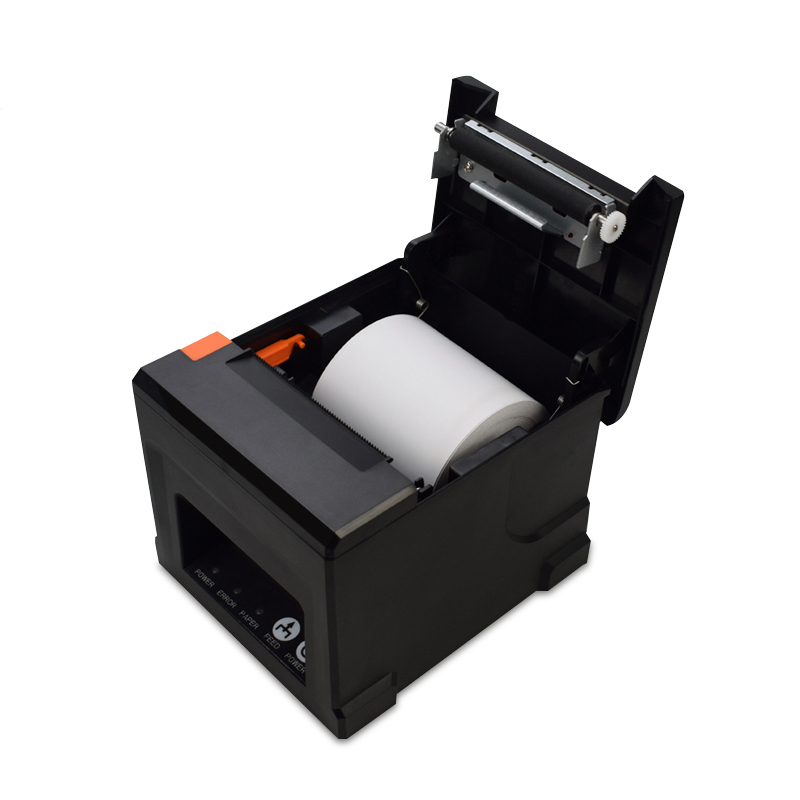

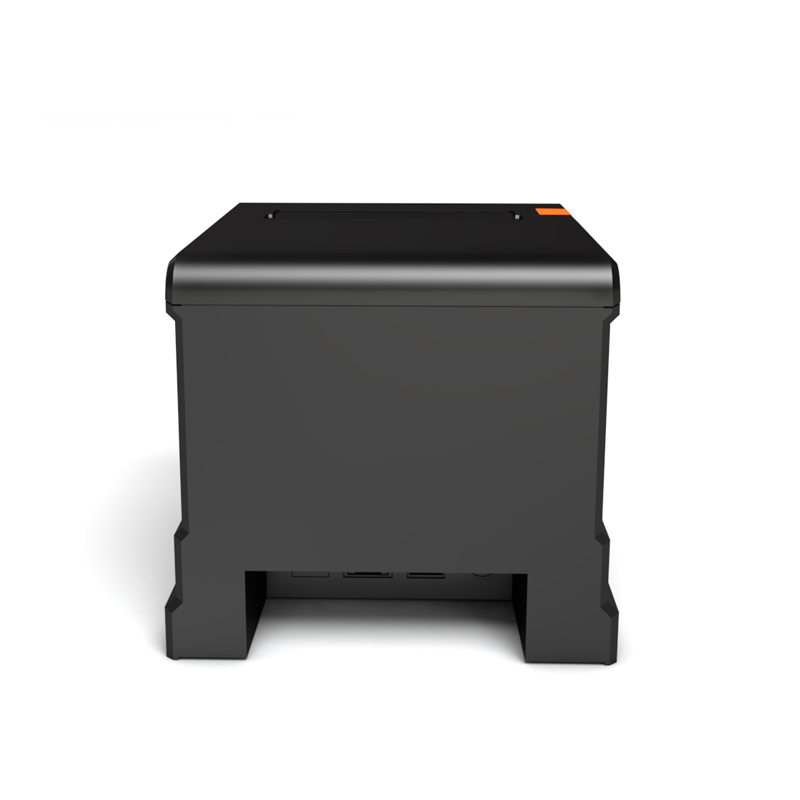

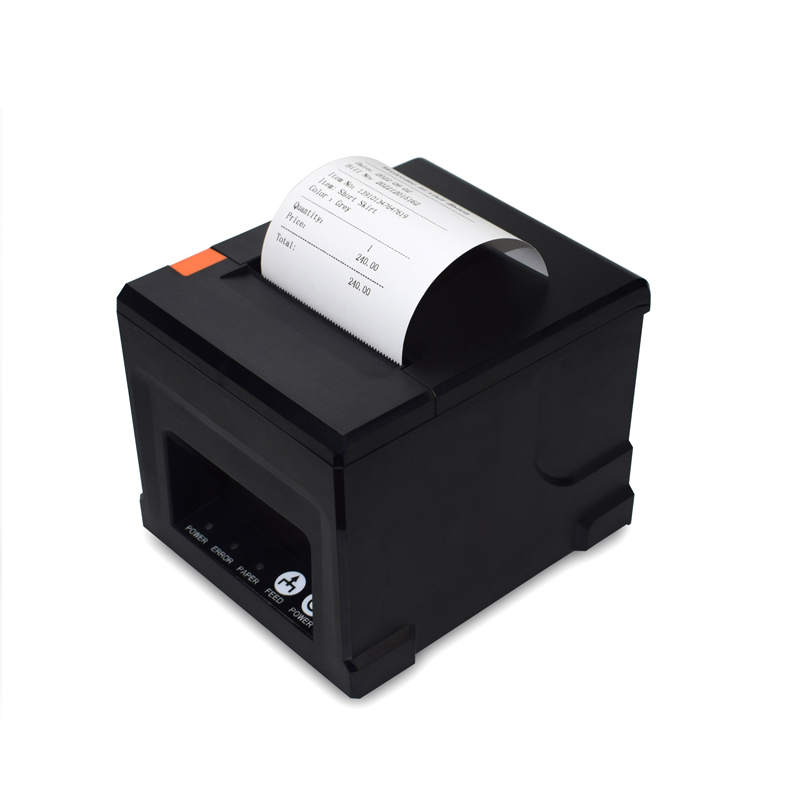

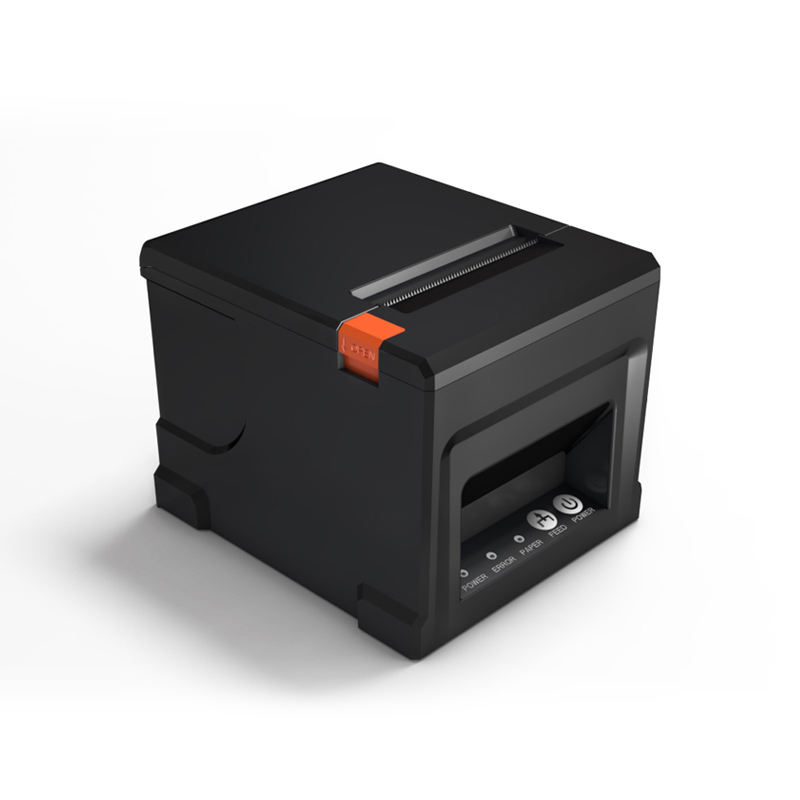

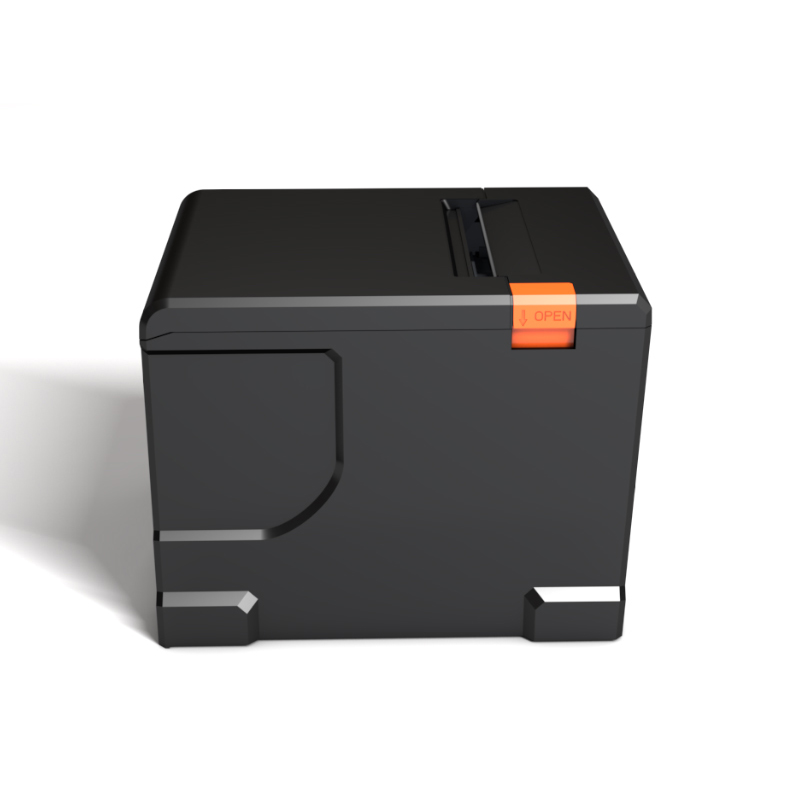

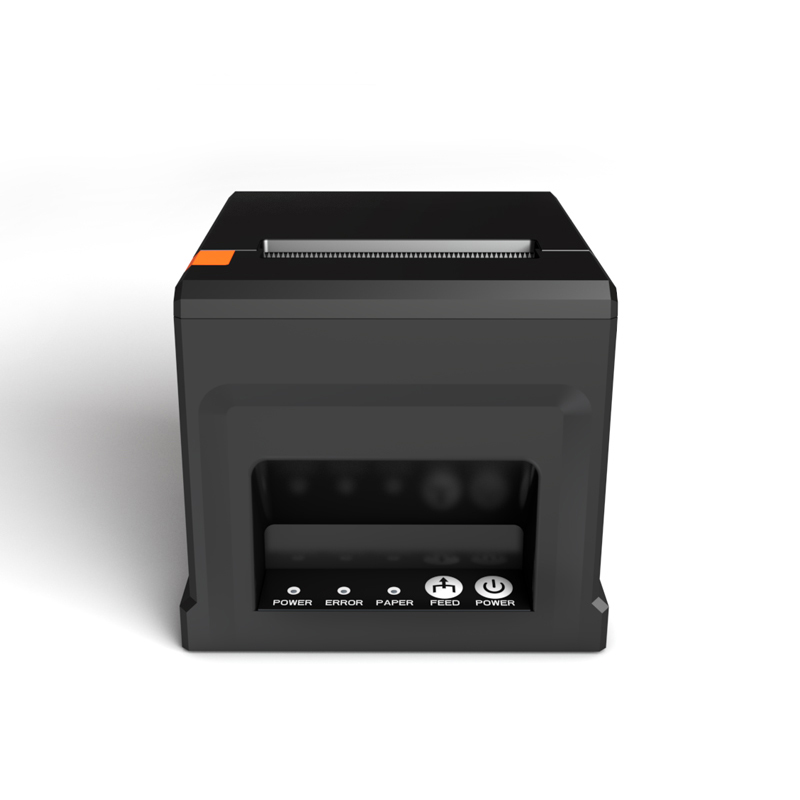

ZJ-8360 Thermal Printer

Printer Manual Printer Driver

1. High printing speed 220mm/s, low print noise.

2. With high quality auto cutter, support Partial / Full cut.

3. Desktop or wall-hanging.

4. Interfaces :USB, Ethernet(LAN), Bluetooth.

5. Suitable for kitchen, reception and many other applications.

	Specifications
	Print Method	Direct Line Thermal
	Interfaces	USB / LAN / Bluetooth (optional)
	Print Comand	ESC / POS command
	Print Speed	220mm/s
	Resolution	203dpi
	TPH Reliability	100KM
	Auto Cutter	Partial / Full
	Cutter Life	1.5 million cuts
	Logo	support downloading and printing logo
	Line Spacing	3.75mm (Adjustable by commands)
	Extension CharacterSheet	PC437（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、Thai、PT151（1251）
	Character Size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,Traditional Chinese:3.0×3.0mm（24×24 dots）
	Supported Code:	1D: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 2D: QR CODE,PDF417
	Driver	Windows / MAC / Linux
	Paper
	Paper Types	Thermal Roll Paper
	Paper Width	79.5±0.5mm / φ 80 mm
	Print Width	72mm
	Paper Thickness	0.06-0.08 mm
	Package
	Printer Dimension	1613.512.15 CM
	Printer N.W.	0.72 kg
	Packing	1pc with accessories/Box, 12 boxes/CTN
	Accessories	Manual, USB Cable, Power Adapter, Paper Roll
	Box Dimension	19.818.413.9 CM
	CTN Dimension	61.438.829.8 CM
	CTN G.W.	14 Kgs
