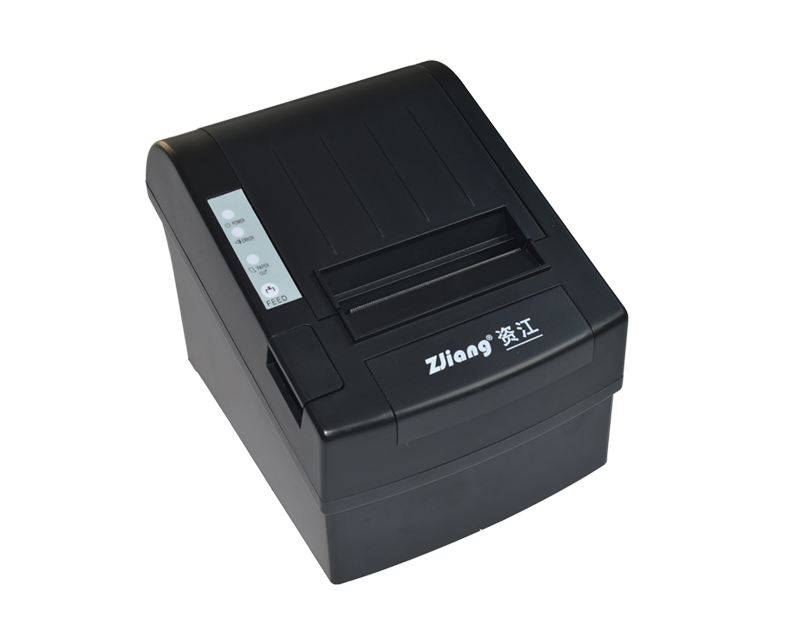

ZJ-8220 Thermal Printer

Print Method	Thermal line printing
Interface Type	USB / USB+LAN / USB+LAN+RS232 （optional）
Style	Black And White
Max Paper Size	80mm
Max. Resolution	576 dots/line

Printer Manual Printer Driver

Powerful Printing Performance

- High speed printing up to 260mm/sec

- 4 type dithering options for graphic printing

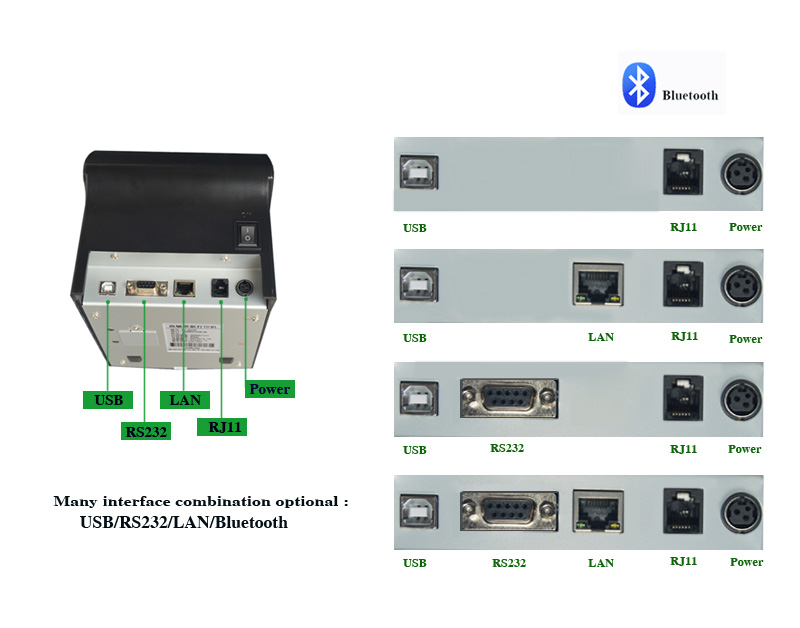

Multiple interface choice

- Built-in USB with a choice of Serial,Parallel or Ethernet

User-friendly Design

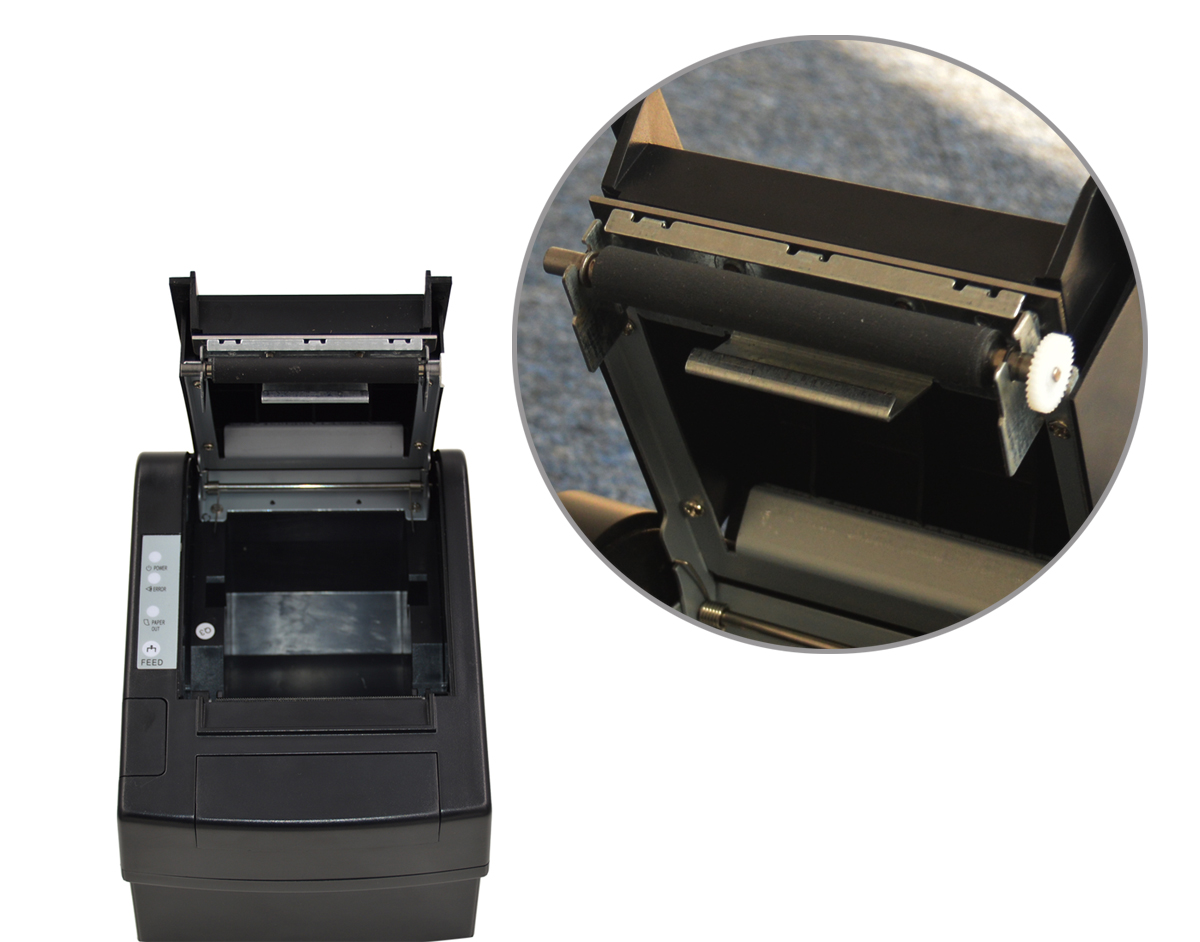

- Anti-jam guide

- Stand-alone or space-saving wall-mount use

	Specifications
	Interfaces	Serial / USB / Parallel / Ethernet / Bluetooth / WIFI (optional)
	Print Comand	ESC/POS
	Print Method	Thermal Line Printing
	Pirnt Speed	260mm/sec
	No. of Total Dots	512 dots/Line
	Auto Paper Cutter	Full or Partial cut
	Print Width	72±0.5mm
	Print Font	12 x 24; 24x 24
	Character Set	Alphanumeric /Chinese Kanji
	NV Flash	256K bytes
	Compatible OS	Window Systems ; Android & IOS Operate Systems
	Paper
	Type	Roll Paper
	Width	79.5±0.5mm
	Roll Diameter	83mm
	Paper Thickness	0.06-0.08mm
	Electrical
	Adapter Voltage	DC24V/2.5A
	Cash Drawer Control	12V/1A
	Print Head	Reliability
	Print Reliability	100km
	Physical
	Dimension	18.614.514cm
	Unit Weight	2.3kgs(with accessories)
	Pieces Per CTN	8 Pieces
	Color	Black and White
	CTN Dimension	51.648.737.4cm
	Carton Weight	19kgs
	Environmental
	Temperature	Working: 0 to 45 Degrees
	Humidity	Working: 10%-80%
	Warantty	12 months at least
	Certificates	CE& FCC ROHS / ISO9001:2008
